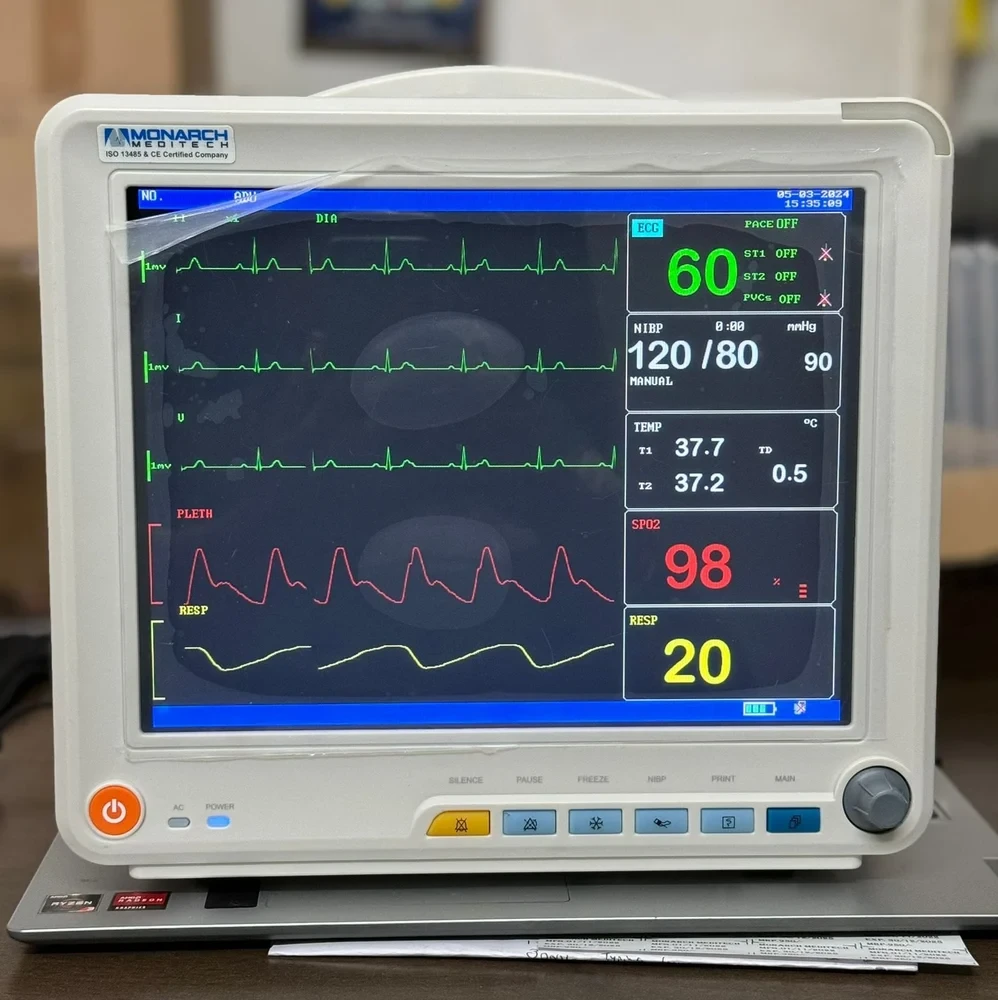

lightweight, compact and portable 5 Para Patient Monitor (8") (5 Para) features high-resolution color TFT display and is suitable for Arrhythmia analysis and S-T segment analysis in neonatal, pediatric and adult patients. Further, this features 72 hours graphic and tabular trends of all parameters on the touch screen monitor with a great level of accuracy.

Features:

• Alarm Yes, audible and visual alarm, alarm events review
• High resolution 8" color TFT display
• Lightweight, compact and portable
• ECG, SPO2, NIBP, RESP, 2-TEMP, PR
• Built-in rechargeable lithium battery
• ECG waveforms of 7-leads display on the same screen
• 72-hours graphic and tabular trends of all parameters
• 72 alarm events of all parameters recall
• 32 seconds full-disclosure waveform review
• 500 NIBP measurement data can be stored and recall
• Data and waveforms color can be adjustable
• Arithmetic analysis and S-T segment analysis
• Suitable for adult, pediatric and neonatal patient

NIBP:

• Method Oscillometry
• Modes Manual / Auto / Continuous
• Auto Measure time Adjustable
• Measurement range: 10-270 mm Hg

ECG:-

• Lead Mode: 3-Iead Or 5-lead
• Lead Selection: I, II, III, avR, AVL, avF, v
• Heart rate range Adult: 15-300 bpm, pediatric
• Neonatal: 15-300 bpm
• ECG waveform: 2 channels
• Accuracy: ±1 bpm or±1 %, Whichever is greater
• S-T segment detection: Measurement range 0.2 mv~2.0 mv

Pulse Rate:

• Range: 20-254 pm
• Accuracy: ±3 bpm

Respiration:

• Method RA-LL impedance
• Range Adult: 0-120 rpm;pediatric/neonatal: 0-15 rpm
• Apnea alarm yes

Temperature:

• Range: 0-50 °C
• Accuracy: ±0.1 °C
• Channel Dual - channel .
